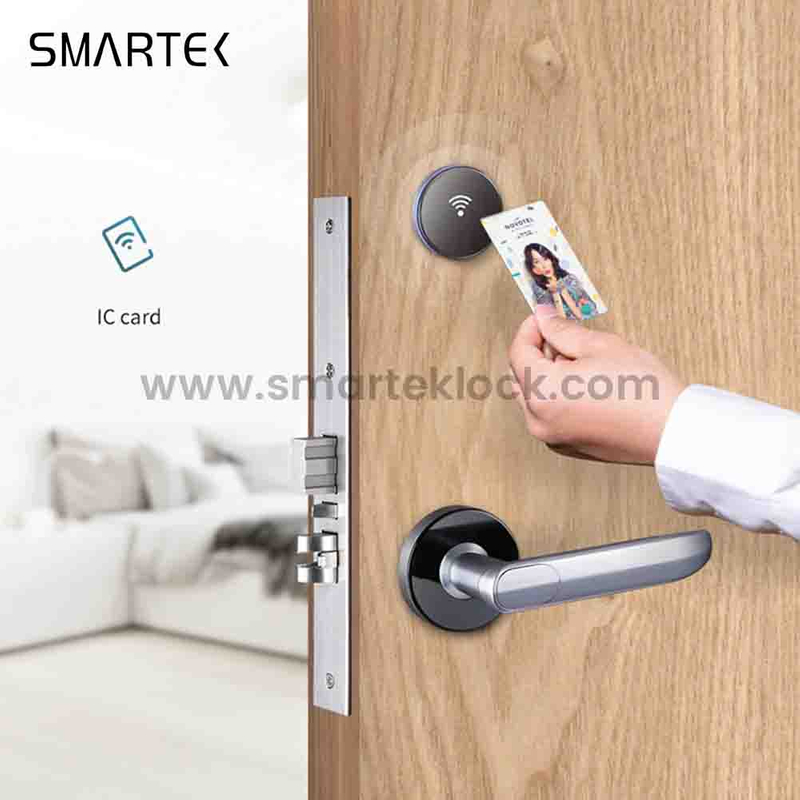

The Smartek S190 RFID hotel door lock is a reliable access control solution for modern hospitality environments. Designed with a strong zinc alloy housing, this offline hotel door lock offers excellent resistance to wear, rust, and corrosion, helping it perform well in high-traffic hotel applications.
Equipped with an ANSI standard mortise, the S190 supports secure and stable locking performance for hotel room doors. It uses RFID card access for convenient keyless entry and includes a mechanical key override for added security and emergency access. This makes it suitable for hotels, resorts, serviced apartments, hostels, and other commercial accommodation projects.
Its split design separates the front reader panel and rear locking mechanism, which simplifies installation, replacement, and maintenance. The lock supports multiple card management functions and can integrate with hotel management software through SDK or compatible PMS interfaces such as Fidelio and Opera, depending on project requirements.
Powered by 4 AA alkaline batteries, the Smartek S190 offers low power consumption and a long service life. It is designed for wooden and steel doors with a thickness of 38–65 mm, making it a flexible choice for a wide range of hospitality door applications.
Offline RFID hotel lock system for secure guest room access
ANSI standard mortise for reliable hotel door security
Zinc alloy body with strong wear and corrosion resistance
Keyless card entry with mechanical key backup
Split structure design for easier installation and maintenance
Supports M1, S50, and S70 smart cards
Compatible with hotel PMS interface such as SDK, Fidelio, and Opera
Suitable for wooden and steel doors
Powered by 4 AA batteries with low battery warning
Ideal for hotels, apartments, resorts, and hospitality projects
Smartek S190 split zinc alloy hotel RFID lock with ANSI mortise structure, keyless card entry and offline hotel access management system. Durable zinc alloy housing, easy installation & maintenance, multi-authority card management, perfect for hotel and apartment room access.
Key attributes
Place of Origin | Guangdong, China | Model Number | S190 |
Brand Name | Smartek | Product name | RFID Hotel Lock |
Material | Zinc Alloy | Color | SS, Black |
Mortise | ANSI Standard Mortise 70# | Unlock Way | RFID card/mechanical key |
Smart Card Type | M1,S50, S70 | PMS Interface | Free SDK, or Fidelio/Opera... |
Power Supply | 4 pcs AA alkaline batteries | Door Thickness | 38-65mm |
Suggest Door Type | Wooden door/ Steel door | ||
Port of dispatch | Zhongshan | Selling Units | Single item |
Single package size | 36X19.5X12 cm | Single gross weight | 3.000 kg |
Attributes
Guangdong, China Place of Origin | S190 Model Number |
Smartek Brand Name | Hotel Door Lock Product name |
Zinc Alloy Material | SS, Black Color |
Mortise: ANSI Standard Mortise 70#
Unlock Way: RFID card/mechanical key
The Smartek S190 is designed for hotel rooms, apartments, resorts, hostels, and other hospitality properties that require secure RFID card access.
The Smartek S190 is an offline RFID hotel door lock, which means it operates without a real-time network connection.
It supports RFID card access and mechanical key backup for emergency unlocking.
The lock uses an ANSI standard mortise 70#, which is suitable for many hospitality door applications.
The Smartek S190 is suitable for doors with a thickness of 38–65 mm.
The main body is made of zinc alloy, offering strong durability, rust resistance, and corrosion resistance.
Yes, it supports SDK integration and may be compatible with systems such as Fidelio and Opera, depending on project needs.
